How to connect STBox to modem via LAN and to TV via HDMI?

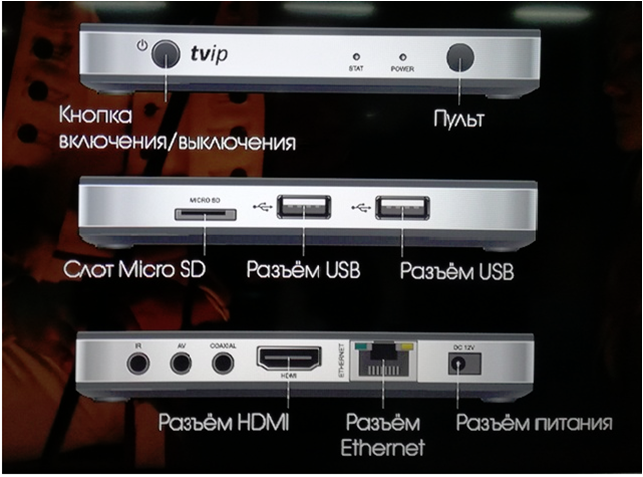

The figure displays slot descriptions.
On/off button,
Receiver for remote controller,
MicroSD slot,
USB slot *2,
HDMI slot(connects to TV),
Ethernet slot(connects to router),
Power slot.

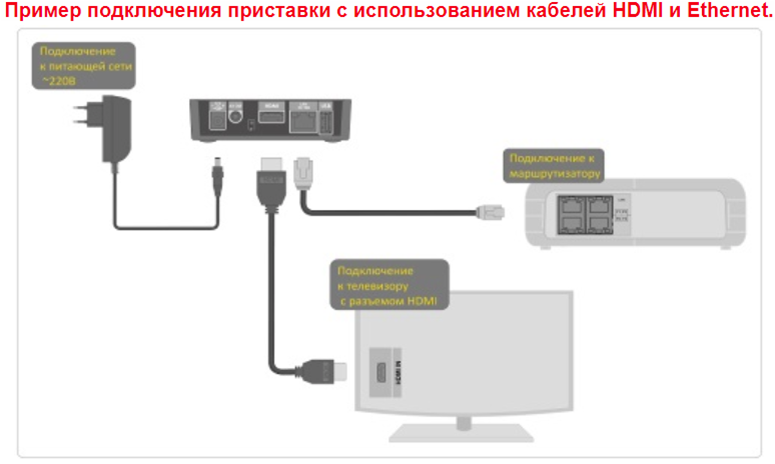

Wiring diagram using HDMI and LAN cables.
Before connection setup, select preferred language: Settings- Language- English,

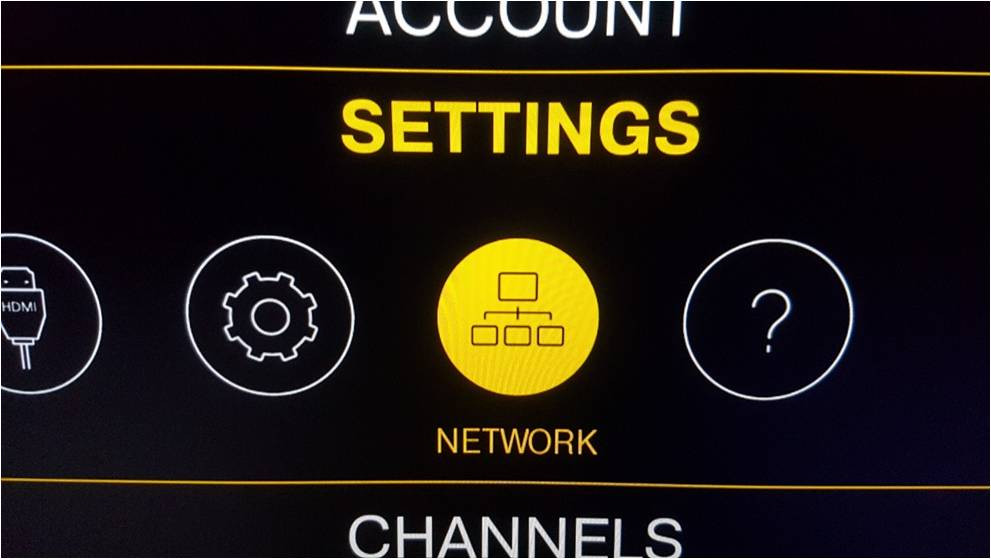

To connect to the network via LAN, select Menu-Settings-Network,

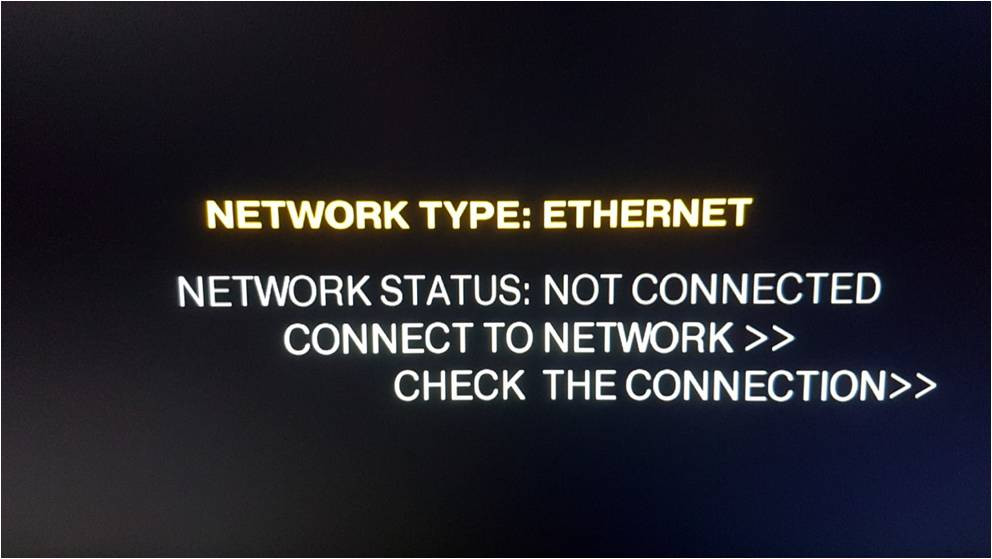

Choose Connection: Ethernet,

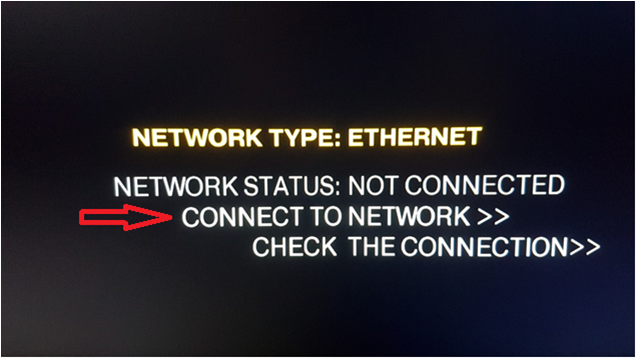

Click on Connect to the network.

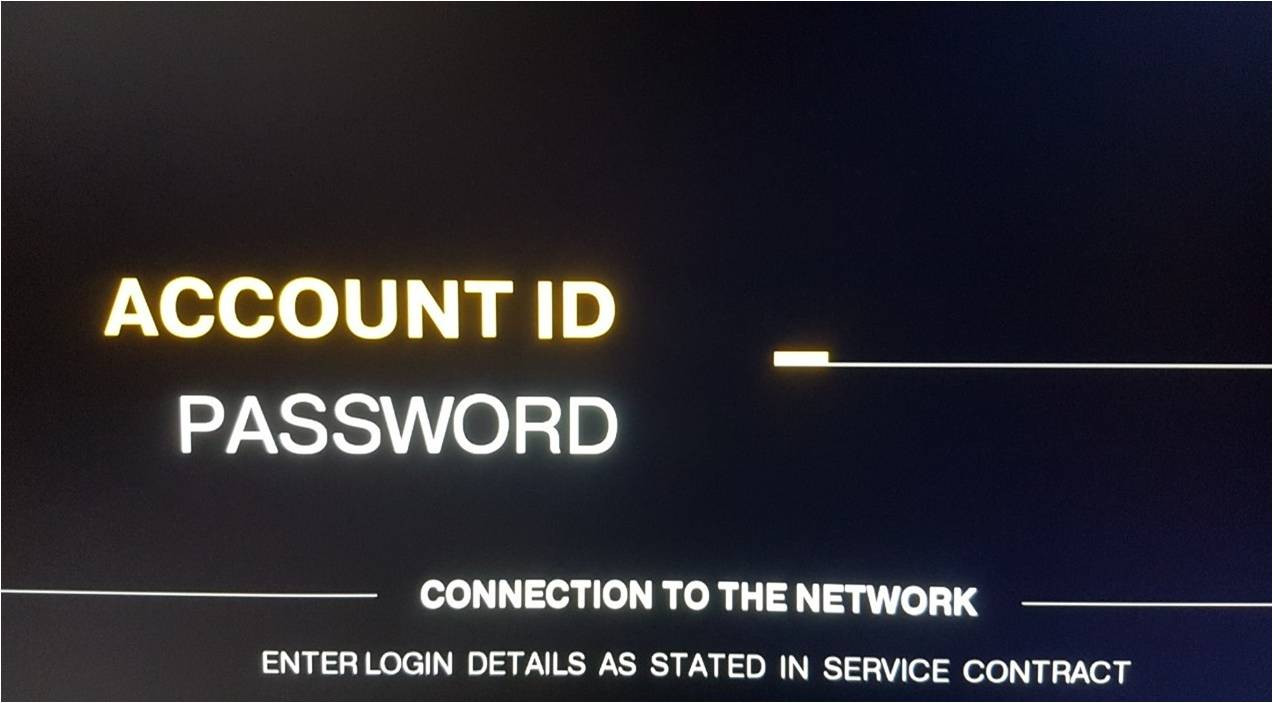

After connecting to the network, in the opened window enter the Account ID and Password specified in your contract.
